    LOUVRES

    CONTOUR® ACOUSTIC

    NOISE-REDUCTION LOUVRES

    Downloads

    Technical information

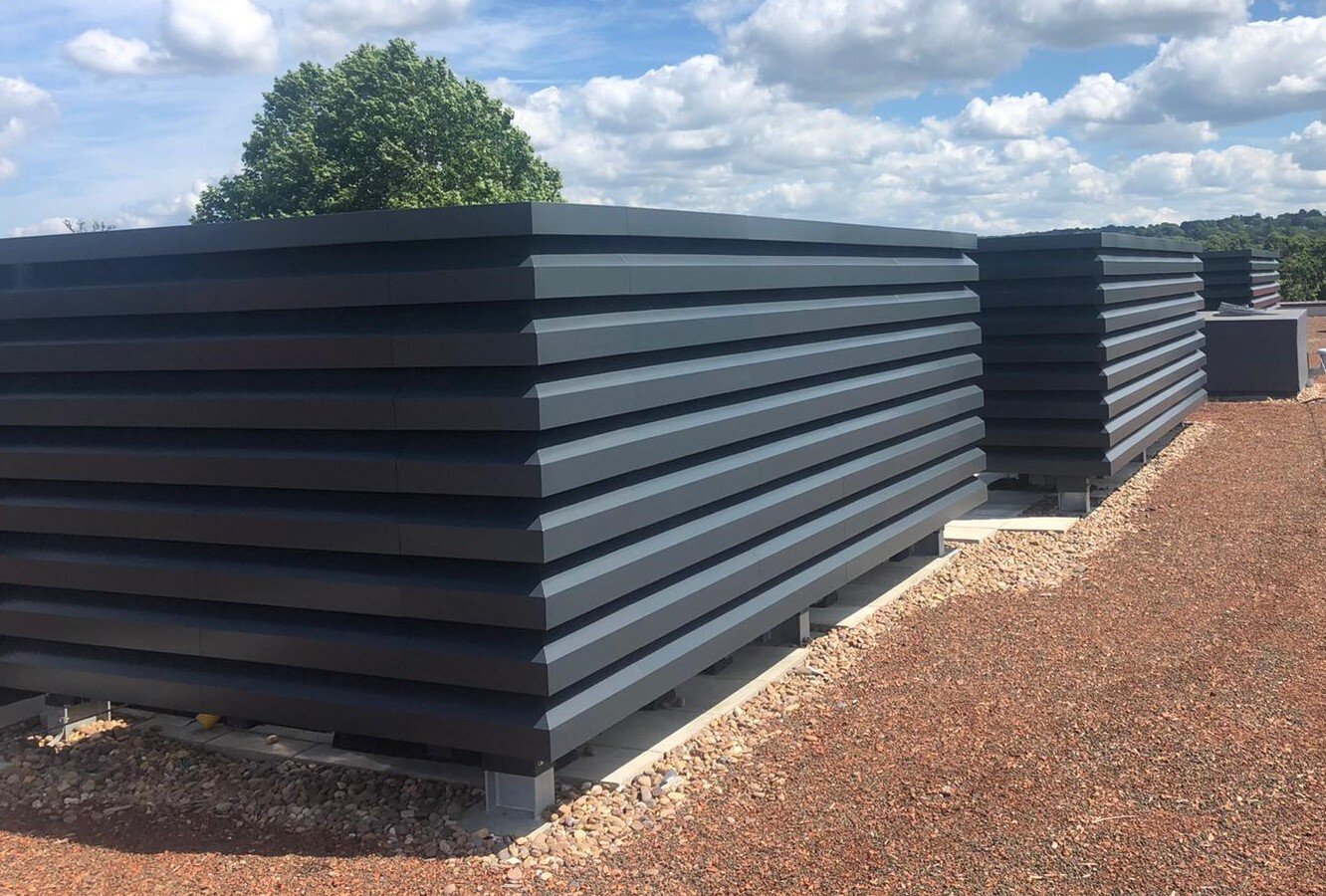

      Image of acoustic louvre plant enclosure for noise reduction

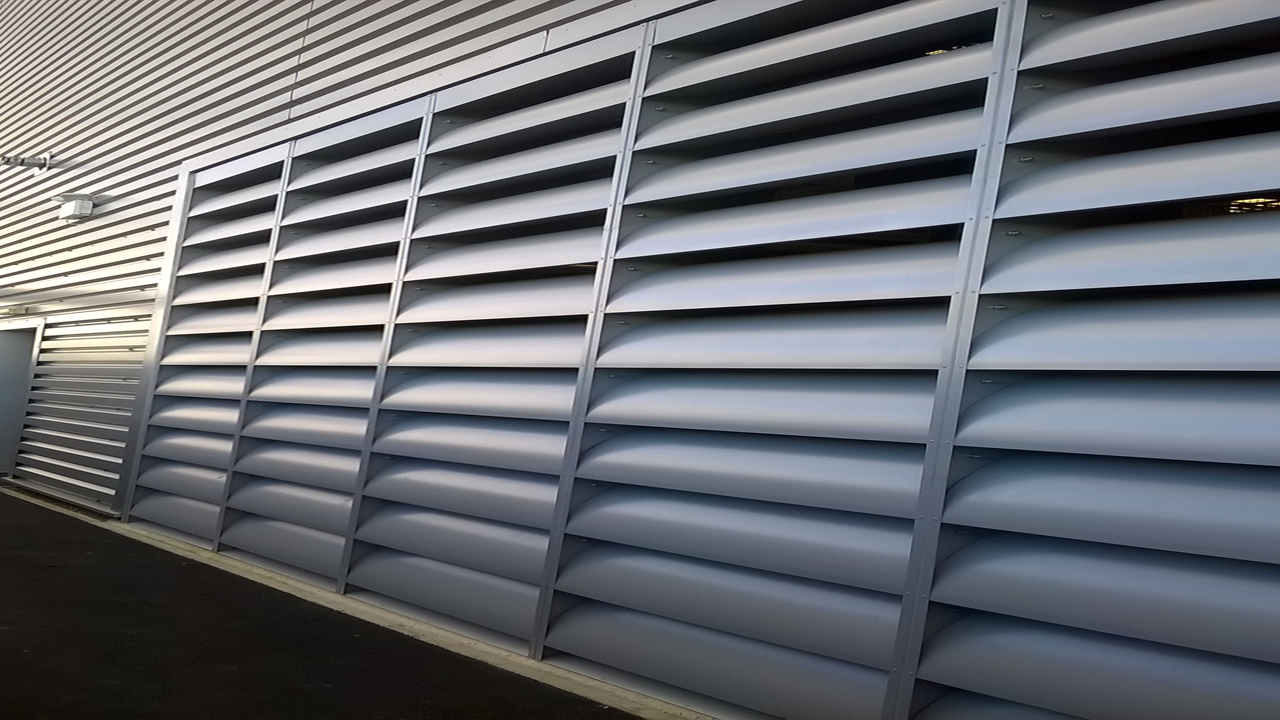

      Image of acoustic louvre plant enclosure for noise reduction

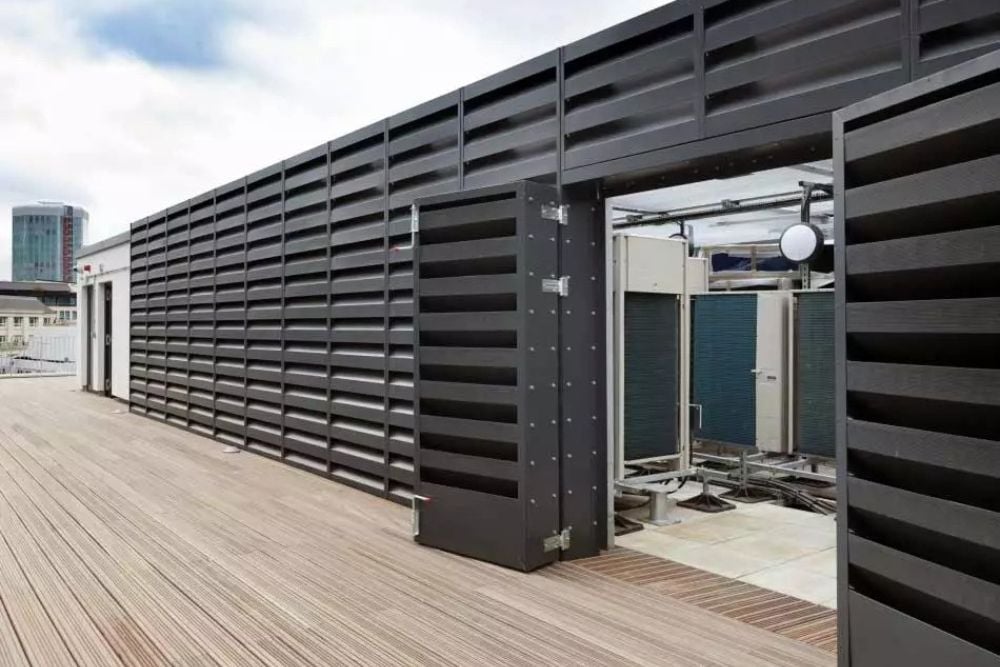

      1-Jun-12-2025-01-20-54-4493-PM

      Single and double-banked acoustic louvre systems tested against the latest standards for noise reduction and water intake with options to prioritise both appearance and performance.

      Contour® Acoustic Louvres are fully tested for acoustic and weathering protection. You can choose between linear and continuous designs available as single panels, large assemblies, or integrated doors. To achieve a balance between aesthetics and performance, architects can specify either single or double-banked curved blades as an alternative option. The Contour® Acoustic range is engineered to address the noise generated by loud and disruptive plant machinery, making it ideal for data centres and buildings in residential or densely populated areas where noise pollution is a concern..

      key features

      • Performance tested - SRI and water penetration test data available for all systems to perform as required
      • System accessories - Single and double louvred doors and insect/vermin mesh can be specified as part of the system
      • Appearance and aesthetics - Continuous and linear appearances available to suit performance and design intent

      Technical Information

      System reference Continuous Curved Banks Depth Weighted Sound Reduction Index Rw(dB) Technical data
      MF-2L1OOSP — — Double 236 mm 13 Technical datasheet
      MF-2L150HP — — Double 304 mm 21 Technical datasheet
      MF-2L15OSP — — Double 300 mm 16 Technical datasheet
      MF-2L3OOSP — — Double 600 mm 25 Technical datasheet
      MF-2R — checked symbol Double 610 mm 23 Technical datasheet
      MF-2R LP — checked symbol Double 610 mm 19 Technical datasheet
      MF-L1OOSP checked symbol — Single 118 mm 8 Technical datasheet
      MF-L150EP checked symbol — Single 152 mm 12 Technical datasheet
      MF-L150HP checked symbol — Single 152 mm 14 Technical datasheet
      MF-L150SP checked symbol — Single 152 mm 10 Technical datasheet
      MF-L225SP — — Single 225 mm 14 Technical datasheet
      MF-L300EP checked symbol — Single 300 mm 20 Technical datasheet
      MF-L300LP — — Single 298 mm 11 Technical datasheet
      MF-L300SP checked symbol — Single 300 mm 18 Technical datasheet
      MF-R — checked symbol Single 305 mm 13 Technical datasheet
      MF-RLP — checked symbol Single 305 mm 11 Technical datasheet
